SourcesHow can an echo help make a picture of something inside the body?
EFW Radiology · Uxborough clinic in Calgary explicitly lists general ultrasound; employer explains the technique.
Where it fits
Pick your class- Physics 20 · D2 — mechanical waves and reflection
How it works

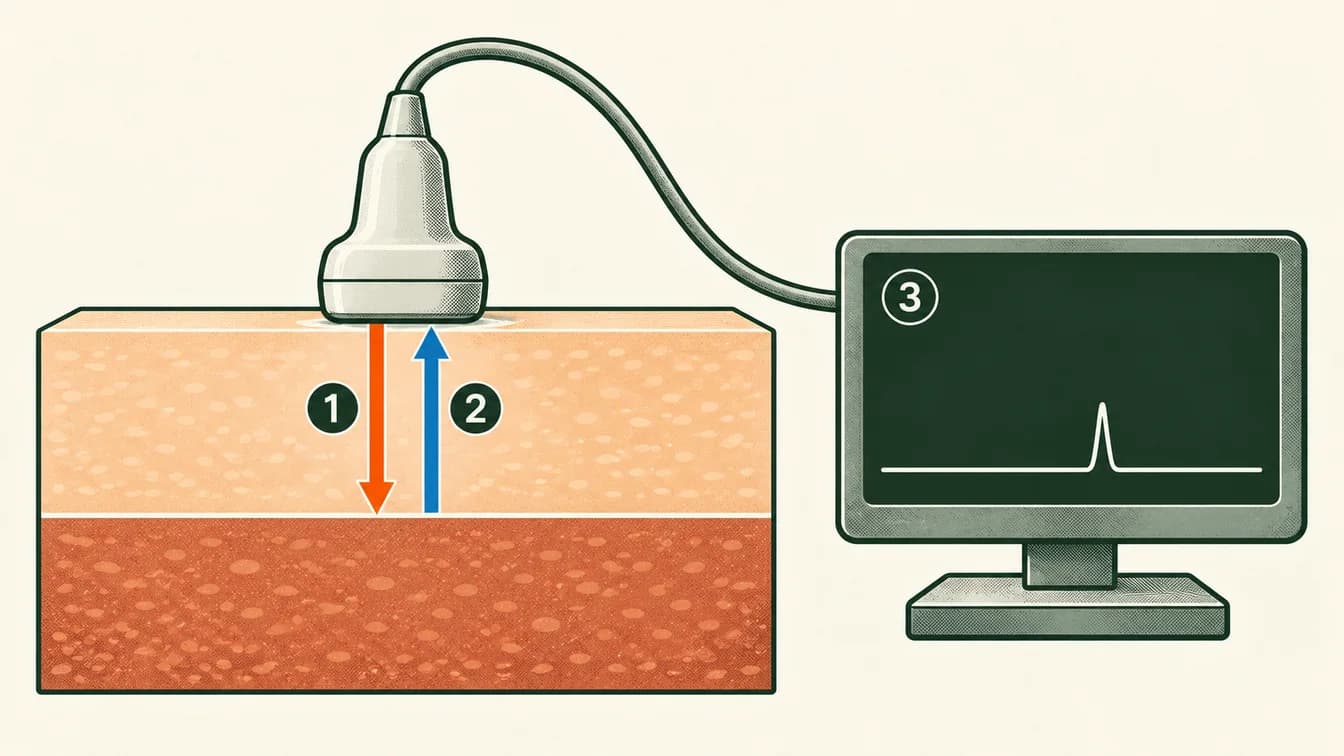

Schematic · not to scale
Send a sound pulse. Listen for its echo.
Send: the probe sends a pulse of high-frequency sound into the tissue. Follow the orange arrow down.
Echo: some sound reflects at the tissue boundary and returns to the probe. Follow the blue arrow up.
Record: the screen shows a received echo. Its return time helps estimate depth; many measurements are used to build an ultrasound image.
One boundary and one echo are shown to simplify the idea. The arrows show travel at different times, not separate physical channels. Only part of the sound reflects; some continues deeper. The screen is a signal sketch, not a diagnostic image.
The lesson, in the real world
An echo can carry information about something we cannot see directly.
- 1
A transducer sends a pulse of high-frequency sound into the body.
Our explanation - 2
Some sound is reflected at boundaries where acoustic properties change and returns toward the transducer.
Our explanation - 3
The machine uses returned signals to help construct an image. Travel time can contribute to depth estimation; a simple model assumes a sound speed.
Our explanation - 4
A sonographer acquires useful views while caring for the patient. A clinician interprets imaging evidence with the clinical question; an image alone is not the whole decision.
Our explanation
Who does this work
Roles connected to this example
What each kind of work involves, the job titles to look for, and where to find postings in Calgary.
Diagnostic medical sonographer
Acquire ultrasound images while supporting the person being examined.
Classroom connection
Producing a clear measurement and interpreting its meaning are connected but different tasks.Job titles to search
Diagnostic medical sonographer · Ultrasound technologistEFW explicitly names ultrasound technologists and booking/reception roles. Listed sonography qualification requirements are employer-stated; detailed teaching explanations are editorial.Medical office and booking support
Help patients and clinical teams coordinate the information and appointments needed for care.
Classroom connection
Care depends on reliable human coordination as well as instruments.Job titles to search
Medical office assistant · Clinic administratorEFW explicitly names ultrasound technologists and booking/reception roles. Listed sonography qualification requirements are employer-stated; detailed teaching explanations are editorial.
Cards distinguish work documented at EFW Radiology from related work at other employers. Dated accounts and postings are not a current staff roster or a promise of a vacancy.
Ways in
For your students
Ways to prepare for this work
Programs that teach skills this work uses. Each is one route in, not a requirement, and no program has endorsed this page.
SAITDiplomaCalgary
Diagnostic Medical Sonography
Ultrasound acquisition, instrumentation and patient care.
About this route
EFW separately states recognised training, Sonography Canada credentials and liability insurance; its evergreen overview is not an offer of work. Check current admissions and intake before applying; this draft does not promise entry or employment.
Why it connects to the work · our interpretation
Diagnostic medical sonographerUltrasound acquisition, instrumentation and patient care. Producing a clear measurement and interpreting its meaning are connected but different tasks.
SAITCertificateCalgary
Medical Office Assistant and Unit Clerk
Clinical administration and patient-record workflows.
About this route
An administrative route, distinct from sonography and physician training. Check current admissions and intake before applying; this draft does not promise entry or employment.
Why it connects to the work · our interpretation
Medical office and booking supportClinical administration and patient-record workflows. Care depends on reliable human coordination as well as instruments.
Ask the class
Use it in class
Ask the class
Why is finding an echo different from knowing what it means?
Use a fictional uniform-medium model with speed 1,500 m/s and an echo returning after 80 microseconds. Calculate the total sound path (0.12 m) and boundary depth (0.06 m). Explain the division by two and one reason a real examination is more complicated.
Mindset it shows
The assumed speed and timing are teaching values, not a patient result. Ultrasound is a mechanical sound wave, not X-rays. Do not diagnose from images or imply that sound travels at one exact speed through every tissue.
About EFW Radiology
An echo can carry information about something we cannot see directly.
- Headquarters
- Headquarters not separately verified for this example.
- Local connection
- Uxborough clinic in Calgary explicitly lists general ultrasound; employer explains the technique.
- Source: efw.ca — general ultrasound(opens in a new tab); efw.ca — uxborough 17(opens in a new tab); efw.ca — commonly recruited positions(opens in a new tab); efw.ca — careers(opens in a new tab)
- Team size
- Not verified. We have not found a dated, sourced figure.
- The problem
- How can an echo help make a picture of something inside the body?
- Source: efw.ca — general ultrasound(opens in a new tab); efw.ca — uxborough 17(opens in a new tab); efw.ca — commonly recruited positions(opens in a new tab); efw.ca — careers(opens in a new tab)
- What they do
- Use reflected sound waves to create diagnostic images.
- Source: efw.ca — general ultrasound(opens in a new tab); efw.ca — uxborough 17(opens in a new tab); efw.ca — commonly recruited positions(opens in a new tab); efw.ca — careers(opens in a new tab)
- Who uses it
- Patients and clinicians seeking information from medical imaging.
- Source: efw.ca — general ultrasound(opens in a new tab); efw.ca — uxborough 17(opens in a new tab); efw.ca — commonly recruited positions(opens in a new tab); efw.ca — careers(opens in a new tab)
EFW Radiology provides ultrasound at Calgary clinics including Uxborough. Its service information explains that reflected sound waves are used to form images. An employer role overview separately describes sonographers' examinations and patient-care responsibilities, and booking staff's coordination work. The story joins the physics of measurement with the people who make clinical imaging possible.
Source: efw.ca — general ultrasound(opens in a new tab); efw.ca — uxborough 17(opens in a new tab); efw.ca — commonly recruited positions(opens in a new tab); efw.ca — careers(opens in a new tab)Read each source’s date and scope: a documented role is not proof of a current vacancy or of where every position is based.
Reported as EFW Radiology states it. EFW Radiology has not reviewed or endorsed this page.
Sources and course fit
Sources checked 18 Oct 2026
Where it fits
- Physics 20 · D2 — mechanical waves and reflection
Editorial mapping to published CBE course topics. Pending educator review. No outcome-code alignment is claimed.
Sources
- efw.ca — general ultrasound(opens in a new tab)
- efw.ca — uxborough 17(opens in a new tab)
- efw.ca — commonly recruited positions(opens in a new tab)
- efw.ca — careers(opens in a new tab)
- SAIT — Diagnostic Medical Sonography(opens in a new tab)
- SAIT — Medical Office Assistant and Unit Clerk(opens in a new tab)
- alberta.ca — edc physics20 30 performance standards.pdf(opens in a new tab)
Organization claims are reported as the organization states them. EFW Radiology has not reviewed or endorsed this page.
What we know, and how
| Type | Claim | How we know |
|---|---|---|
| work | EFW Radiology provides ultrasound at Calgary clinics including Uxborough. Its service information explains that reflected sound waves are used to form images. An employer role overview separately describes sonographers' examinations and patient-care responsibilities, and booking staff's coordination work. The story joins the physics of measurement with the people who make clinical imaging possible.Source: efw.ca — general ultrasound; efw.ca — uxborough 17; efw.ca — commonly recruited positions; efw.ca — careers | Company-stated work with source limits preserved |
| local connection | Uxborough clinic in Calgary explicitly lists general ultrasound; employer explains the technique.Source: efw.ca — general ultrasound; efw.ca — uxborough 17; efw.ca — commonly recruited positions; efw.ca — careers | Source-backed Calgary connection |
| course fit | Performance standards explicitly include wave speed, mechanical-wave reflection and ray/wave diagrams. Pulse-echo imaging is the applied context; clinical interpretation is outside scope.Source: alberta.ca — edc physics20 30 performance standards.pdf | Editorial application of source-checked curriculum concepts |
| limits | Keep role-overview evidence separate from current hiring. The draft offers sonography and medical-office routes, not a shortcut into physician practice.Source: efw.ca — general ultrasound; efw.ca — uxborough 17; efw.ca — commonly recruited positions; efw.ca — careers | Scope of this example |
Solid green: the organization states it. Outlined: seen in a dated source. Dashed: our interpretation, not yet researched, or announced but not yet real.
